CAT 190hp Motor Grader High Power

Хуваалцах:
    Нэгжийн үнэ: USD 69138 / Set/Sets
    Төлбөрийн хэлбэр: L/C,T/T,Money Gram,Western Union
    Incoterm: FOB,CFR,CIF
    Мин. Захиалга: 1 Set/Sets
    Хүргэгдэх хугацаа: 30 Өдөр
  • Mr. Frankie Zheng

Үндсэн мэдээлэл

Загварын дугаар: SEM 919

Certification: TUV, UL, SGS, ISO, CE

Condition: New

Application: Railway, Mine, Farmland, Highway, Other

Transmission: Hydraulic

Walking Mode: Wheeled

Type: Medium-sized Grader

Additional Info

Сав баглаа боодол: nude packing

Брэнд: SEM

Тээвэрлэлт: Ocean,Land

Гарал үүслийн газар: Shandong(Qingzhou)

Хангамжийн чадвар: 500 Set/Sets per Month

Гэрчилгээ: CE ISO

Порт: Qingdao,Yantai,Shanghai

Бүтээгдэхүүний тодорхойлолт

CAT SEM 919 Motor Grader ,Your Best Choice.

Comfort: SEM 919 motor grader World Class industry control layout with low lever efforts for reduced operator fatigue.

High Reliability: A-frame designed drawbar provides strength in all blade positions.

High Productivity: Load sensing hydraulic system provides consistent and precise blade movement.

SEM Tandem Axle

Leveraging Caterpillar designing and experience on MG tandem axle.
Improved bearing Layout and optimized load distribution with 4 planetary gears final drive.
Less down time and reduced labor and service cost for maintenance and repairing.
Longer service interval for lubrication oil change.
Leading in class manufacturing and quality control level, mandatory performance testing before delivering to MG assembly line.
Control System
7 position link bar with electric over hydraulic control allows ease of operation from within the cab.
Optimum blade reach capability, quick DCM re-positioning for greater reach for better working on high bank side slope.
The link bar is essential for extending reach capability when cutting a bank slope or back slope of a ditch.
Replaceable bushings reduce service time and cost.
Blade Float
Standard blade float function allows blade to lower without hydraulic pressure for increased versatility.
Blade float is engaged by pushing the left and right lift cylinder controls all the way forward past the detent.
Provides protection for machine and pavement during snow removal and snow plowing
Hydraulic System
Proportional Priority Pressure Compensating (PPPC) Valves contain specifically cut spools for motor grader applications, continuously matching of hydraulic flow and pressure to power demands, allowing ease of multi-function control for optimizing working efficiency.
World-class variable displacement piston pump, efficiently reduces power consumption and hydraulic system heat, improving fuel efficiency.
Load-sensing hydraulic system provides consistent and precise blade movement, improving finishing performance.
Inboard lock check valves within PPPC, prevents inadvertent cylinder movement and potential leaks.
Drawbar
A-frame tubular design drawbar provides maximum strength and durability.
Replaceable drawbar draft ball (bolted – not welded) for less service time and cost.
Easy removal of wear shims to adjust drawbar
Front Frame
Flanged box section design removes welds from high stress areas, improving reliability and durability.
Continuous top and bottom plate construction provides consistency and strength, improving front frame durability.
Hydraulic hose routing minimizes exposure to damage and provides quick access for service.
Maintenance-free bushings improve durability and reduce overall service cost.
Control Layout
Short throw levers are efficiently spaced, allowing ease of multi-function control.
Short lever travel (40mm) with low lever effort reduces operator fatigue.
Cat® Product LinkTM
Cat® Product Link™ will support your business, and accurately convey information of the equipment to relevant personnel in a timely and effective manner for your better equipment management.
Large Cab
High performance dashboard with 3 levels alarming monition system.
Cab mounted on the front frame provides exceptional view to blade and front axle even during articulation.
Large cab with 1.9m height and 30% larger space than most competitors, provides exceptional Comfort.

Product Specification(Motor Grader)

1540439643 1

Product Overviews

1d22d3c7ead042b68e5a437b821a8ee6

6e74effd44954f83a971297ae959c85f


20170821213656

20170821193529

20170821194141

20170821193559

750

Бүтээгдэхүүний ангилал : SEM Motor Grader > SEM919 Motor Grader

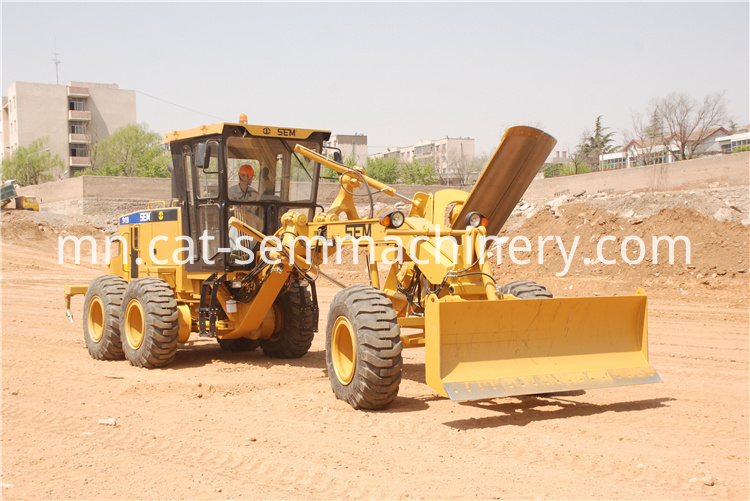

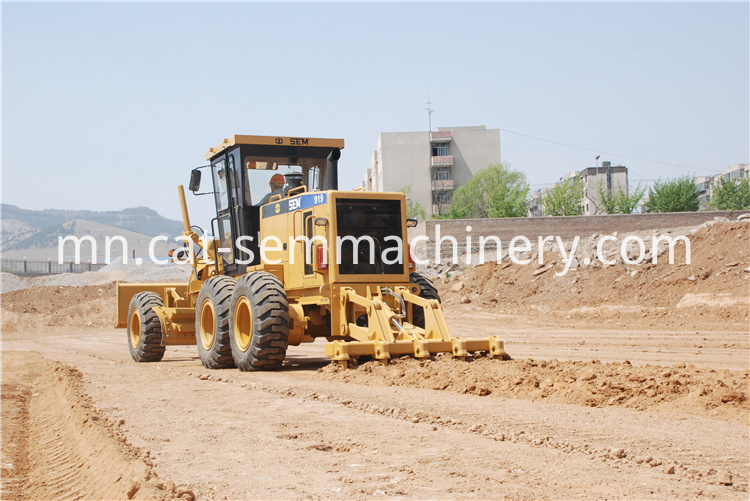

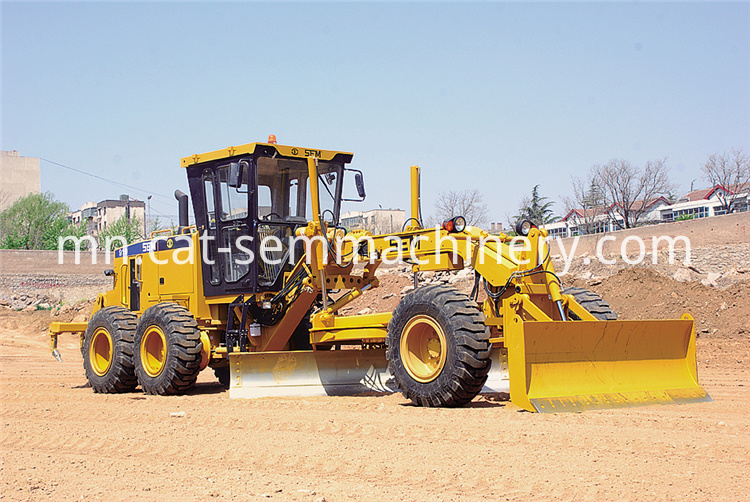

Бүтээгдэхүүний зураг
  • CAT 190hp Motor Grader High Power
  • CAT 190hp Motor Grader High Power
  • CAT 190hp Motor Grader High Power
  • CAT 190hp Motor Grader High Power
  • CAT 190hp Motor Grader High Power
